About This

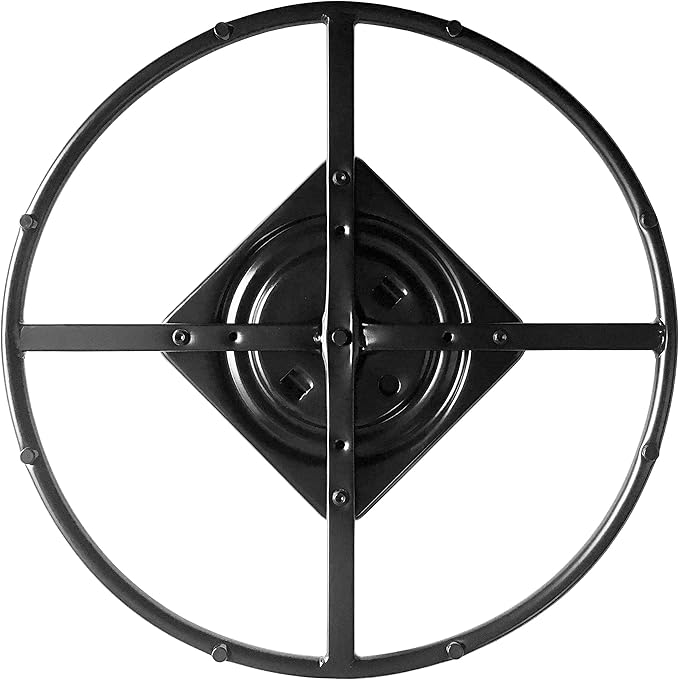

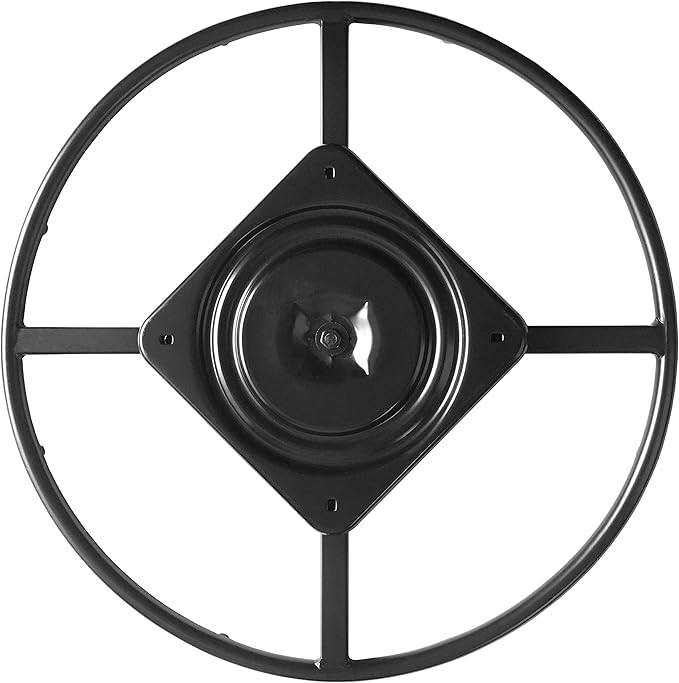

• 24" wide ring base made of 3/4" high test steel tube ring w/ four welded rectangular steel cross bars measuring 1" x 1/2" and 8 pre-installed glides
• 10.25" square flat profile swivel plate w/ 65 3/8" Ball Bearings
• Mounting holes for mounting swivel to underside of chair measure 8" x 8". Holes are rectangular shaped measuring approximately 1/4" x 3/8"
• Overall height with installed glides and swivel is 1.75" - Black powder-coat painted finish
• ** Note: The painted finish of the swivel plate and ring are meant only as a protective finish and may have some scratching & marring from storage & handling. This is not meant as a visible finish as the part is normally hidden from view when installed.

Overview

• Brand : chairpartsonline
• Color : Black
• Size : 24"
• Back Style : High Back
• Special Feature : Swivel
• Material Alloy Steel : Frame Material Alloy Steel
• : Material Alloy Steel
• : Frame Material Alloy Steel
• Seat Material Type Foam : Maximum Weight Recommendation 300 Pounds
• : Seat Material Type Foam
• : Maximum Weight Recommendation 300 Pounds
